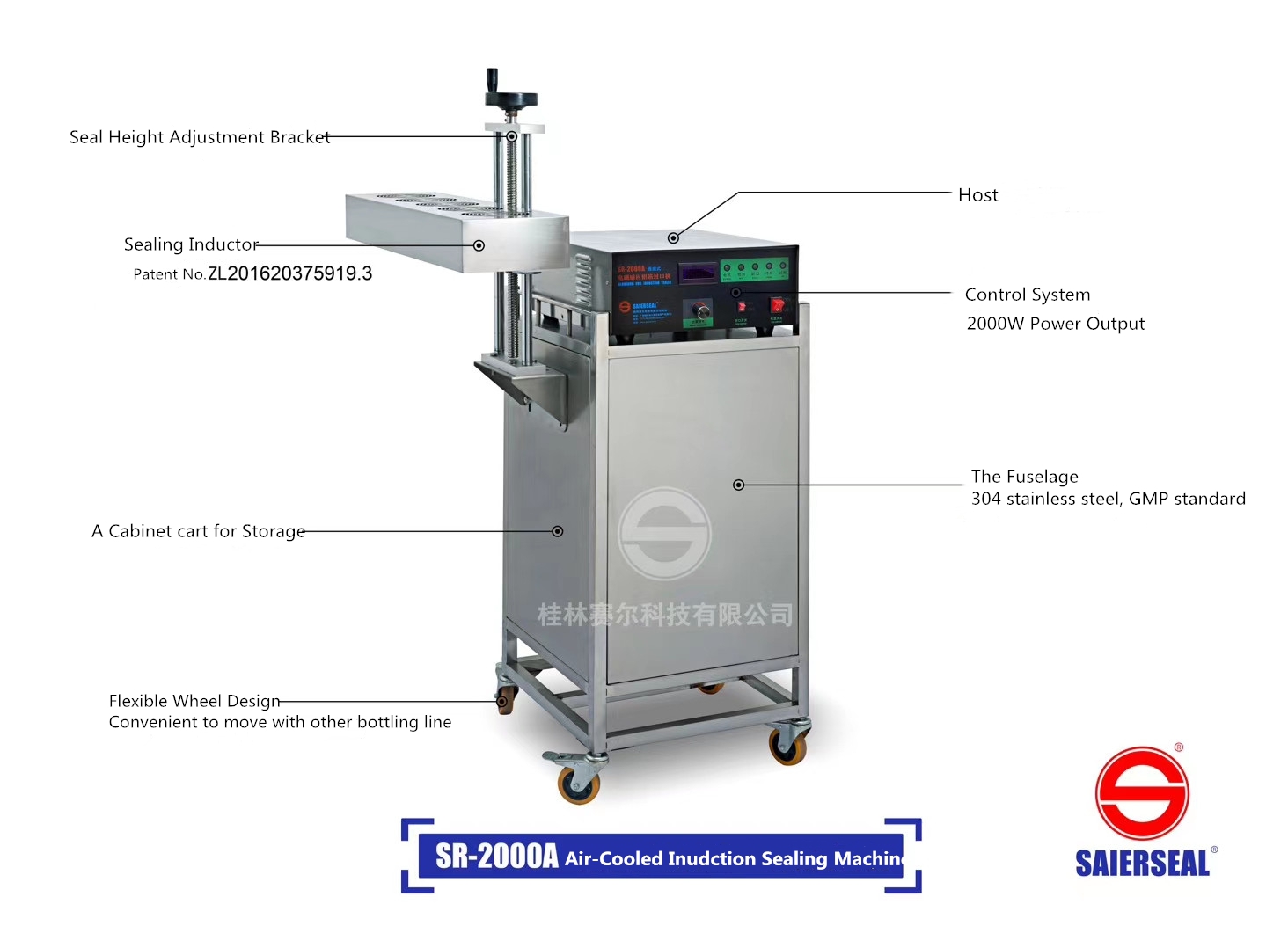

Air cooled & table top induction sealing machine SR-2000A





Continuous electromagnetic induction aluminum foil sealing machine SR-2000A
	1、Full modular component design, can be against moisture, erosion, dust and magnetism, minimizes maintenance requirements and increase the rease.
	2、The induction generator has adopt the latest imported transistor and CPU module cont
	3、All functions are marked on the panel clearly . operation is very convenience
	4、The induction sensor with 6 pieces coil and 5 pieces 220V fan( coil quantities can be chance accorder to bottle nect diameter), it can sealing quickly and perfectly.
	5、Height of  induction sensor is adjustable and flexible for a range of bottle height.
	6、Full Air-cooling systems, efficient high-speed, it can continual work for whole day
	7、With stainless steel body, meet the GMP demand.
	8、With the special alarm system, the machine will alarm when the tank water less, water temperature high
	9、 With 4 wheels under the machine body, it is very easy to move and use to flow packing liner.
	Host, stand, sensor head can be split to reduce transportation costs
	The induction generator, shelf and induction seasor can be split to pack。It is easy to ship.
	10、The induction sensor and generator of same machine model can be change. Our machine has get the CE authentication
	NOTE: the conveyor and rejector are optional part.
	Product: for pesticide, tablet & capsule, foods, cosmetic, lubricant &oil packaging etc. Plastic bottle and glass bottle sealing.





						model

						SR-2000A

						bottle neck diameter

						20mm-80mm/40-120mm

						bottle height

						0-490mm

						flow packing line speed

						0-10m/min

						max power

						2000W

						sealing speed

						0-200blts/min

						electricity power

						220V, 50/60Hz

						Induction sensor size

						(L*W*H)

						665mm*170mm *100mm

						machine size

						450mm*450mm*1060mm

						machine weight

						47kg

						packaged size

						1060mm*815mm*555mm

						package weight

						78kg
